Large Span Logistics Distribution Warehouse with Loading Dock Solutions
Brand MEITUO
Product origin Shenyang, China
Delivery time 30-45 Days after Drawing Approval
Supply capacity 2000 Tons per Month
Meituo large span logistics warehouses deliver column-free clear spans up to 60 m, integrated loading docks and high-bay racking-ready layouts. Q355B portal frames and 30-45 day delivery make us the trusted partner for distribution centers, 3PL hubs and logistics parks worldwide.
Large Span Logistics Distribution Warehouse — Built for High-Throughput Supply Chains
A modern Large Span Warehouse is the backbone of every high-throughput distribution network. Meituo designs and fabricates Logistics Warehouse systems for global 3PL operators, e-commerce fulfillment networks, retail distribution centers and industrial parks. Every Distribution Center Building we deliver combines clear-span steel structures with engineered loading-dock packages, mezzanine offices and turnkey MEP integration.

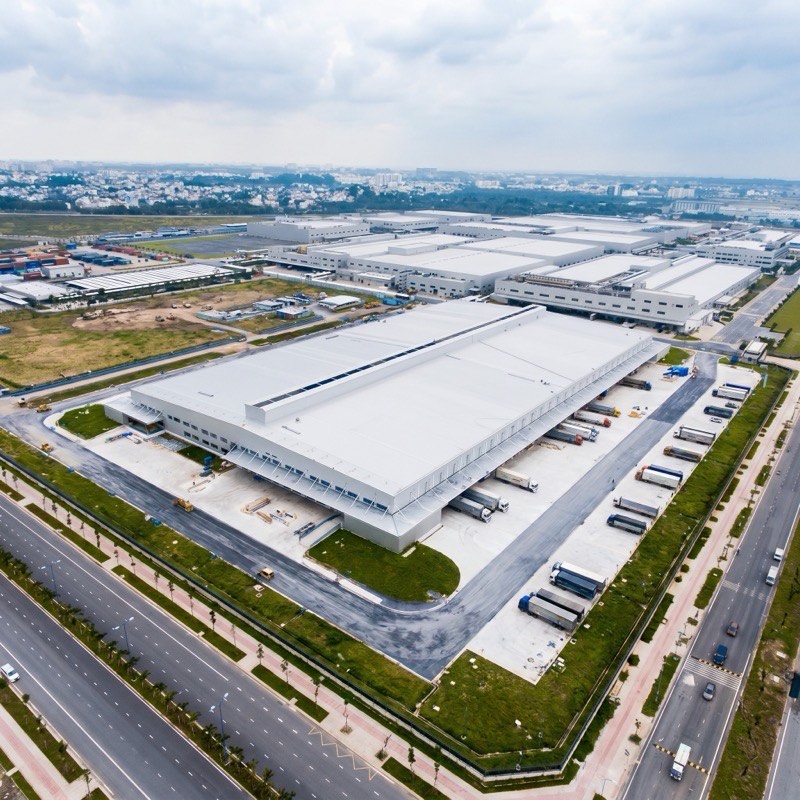

Figure 1. Multi-bay logistics distribution warehouse with integrated dock-door array and yard layout.
1. Why a Large Span Warehouse Is the Right Choice for Modern Logistics
Conventional warehouses with intermediate columns force restrictive racking layouts and obstruct forklift traffic. A clear-span Large Span Warehouse from Meituo eliminates internal columns up to 60 m, unlocking flexible racking deployment — selective, double-deep, drive-in, push-back, AS/RS mini-load or shuttle systems — without structural compromise. This translates into 15%-25% more pallet positions per square meter and significantly faster pick paths.
2. Standard Engineering Envelope of the Meituo Logistics Warehouse
Every Logistics Warehouse we deliver is verified against international codes (GB 50017, Eurocode 3, AISC 360, ASCE 7) with full 3D finite-element analysis. The table below summarizes the standard configuration; every parameter is fully customizable to your operational profile.
| Parameter | Standard Range | Remarks |
|---|---|---|
| Clear Span | 24 m – 60 m | Single or multi-span portal frame |
| Eave Height | 9 m – 18 m | Optimized for high-bay racking & VNA aisles |
| Bay Spacing | 9 m / 12 m | Aligned with dock-door modulus |
| Floor Area | 3,000 m² – 200,000 m² | Modular & future-expandable |
| Loading Docks | Pre-engineered dock leveler + sectional door + dock shelter | 4-100+ dock-door array |
| Floor Loading | 3 t/m² – 8 t/m² | Heavy-duty concrete slab w/ FM2 flatness |
| Roof & Wall | PU / Rockwool sandwich panel 50-150 mm | Fire rating up to A-class |
| Mezzanine / Office | Steel mezzanine 0.5-1.5 t/m² | Integrated office, dispatch & locker rooms |
| Service Life | 50 years | Hot-dip galvanized secondary members |
3. Loading-Dock Integration for Faster Throughput
A high-performing Distribution Center Building lives or dies by its loading-dock design. Meituo delivers fully engineered dock packages: hydraulic dock levelers (6-10 t), inflatable or mechanical dock shelters, traffic lights, vehicle restraints and pre-engineered canopies. Our standard module supports both 12 m (40 ft) and 16 m (53 ft) trailers, with optional drive-in ramps for box trucks.

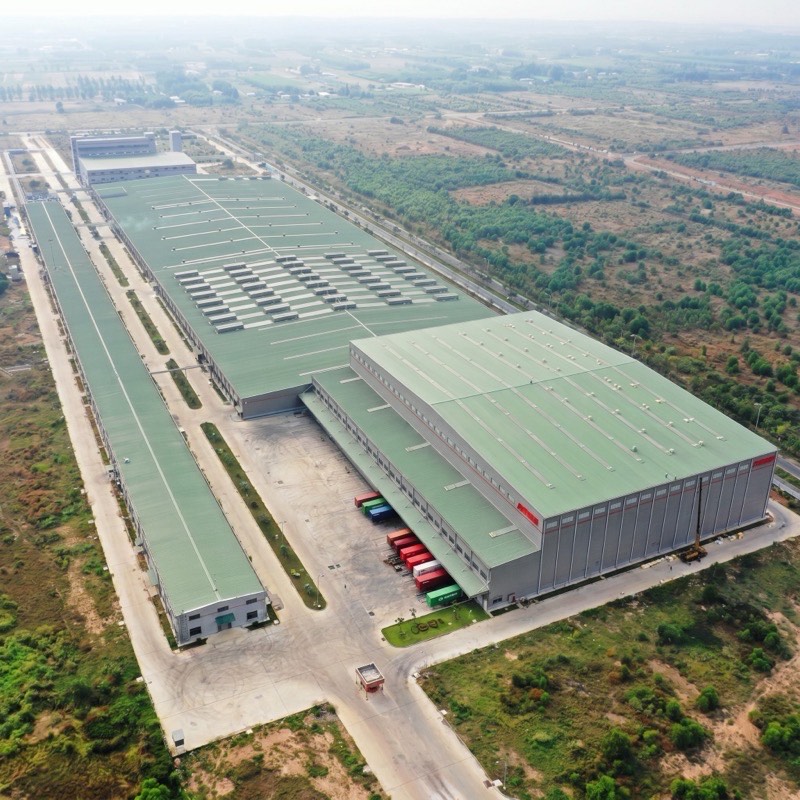

Figure 2. Aerial view of a steel distribution warehouse cluster optimized for trailer circulation.
4. Steel Distribution Warehouse Built for E-Commerce Velocity
E-commerce fulfillment demands warehouses that can flex with demand surges. Our Steel Distribution Warehouse design supports rapid layout reconfiguration: bolt-on mezzanines, repositionable racking grids and pre-routed MEP services. The portal-frame system tolerates 10%-15% future load increases without structural reinforcement, protecting your CAPEX as throughput grows.
5. Logistics Park Steel Building — Master-Plan Solutions

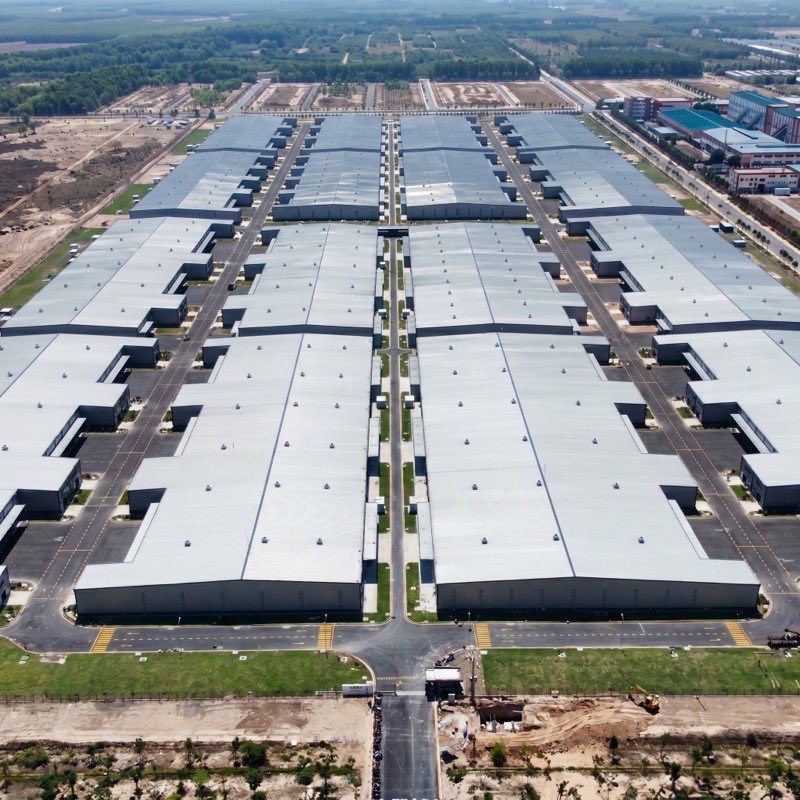

For Logistics Park Steel Building developers, Meituo provides master-plan packages: identical-module warehouses, ring roads, yard layouts, perimeter fencing, gatehouses and office blocks — all engineered for phased construction. We have completed multi-warehouse parks across Southeast Asia, the Middle East, Africa and Latin America, ranging from 50,000 m² to 300,000 m² total GFA.
Figure 2. Interior of a logistics park steel building configured for high-bay selective racking.
6. Project Delivery Workflow
Step 1 — Operational Brief: Share throughput, SKU profile, racking type and dock count; we revert within 24 hours with a layout study and budget.
Step 2 — Detailed Design: Full 3D BIM in Tekla / STAAD.Pro with engineer-stamped calculations and clash detection against MEP.
Step 3 — Fabrication: CNC cutting, robotic welding, shot blasting Sa 2.5, three-coat anti-corrosion painting.
Step 4 — QC & Loading: 100% UT/MT inspection of critical welds + trial pre-assembly before container loading.
Step 5 — Site Installation: Optional EPC installation crew or on-site supervisor dispatch; 50,000 m² warehouses typically erected in 90-120 days.
7. Frequently Asked Questions (FAQ)
Q1. What is the typical CAPEX for a 20,000 m² Large Span Warehouse?
Steel-only FOB pricing typically ranges from USD 60-95 per square meter depending on span, eave height and loading. Send us your site coordinates and operational brief for an itemized quotation.
Q2. Can the Logistics Warehouse design accommodate cold-chain or temperature-controlled zones?
Yes. We integrate insulated walls (PU sandwich panels up to 150 mm), vapor barriers and pre-engineered HVAC bays for ambient, chilled (+2 °C to +8 °C) and frozen (-25 °C) zones within a single envelope.
Q3. How many dock doors do you recommend for a Distribution Center Building?
The industry rule of thumb is 1 dock door per 800-1,200 m² of floor area for cross-dock operations, and 1 per 1,500-2,500 m² for storage-and-pick. Our engineers will run a throughput calculation for your specific volume.
Q4. Do you supply only the steel structure or full turnkey?
Both. We offer design-only, steel-supply-only, supply + dock-equipment package, and full EPC turnkey including foundation, MEP, fire-fighting and racking integration.
Q5. What snow / wind loads can the Steel Distribution Warehouse handle?
Standard design covers up to 1.10 kN/m² wind (typhoon zones) and 2.50 kN/m² snow (Nordic/Alpine zones). Site-specific loads are calculated per local code.
Q6. Can the Logistics Park Steel Building be expanded after initial construction?
Yes. Our modular bay design allows lateral and longitudinal expansion with minimal disruption to existing operations — typically by adding new bays to an end wall.
Q7. What lead time should we plan for a 30,000 m² project?
Detailed design: 3-4 weeks. Fabrication: 35-45 days. Sea freight: depends on destination. Site erection: 60-80 days for a 12-15 person crew (multiple crews can run in parallel).
8. Request a Tailored Logistics Warehouse Proposal
Ready to plan your next Large Span Warehouse project? Send us your site dimensions, throughput target, racking system and dock count. Our engineering team will revert within 24 hours with a tailored proposal including 3D rendering, BOQ and CIF/FOB pricing.
