Heavy Duty Industrial Storage Shed with Steel Mezzanine — Engineered for Manufacturing Plants

A modern Industrial Storage Shed is no longer just a roof — it is a hybrid manufacturing-and-storage envelope that must handle overhead cranes, heavy floor loads and multi-level racking simultaneously. Meituo designs and fabricates Heavy Duty Steel Warehouse systems for automotive plants, electronics factories, FMCG manufacturers and pharmaceutical campuses across India, the Middle East, Africa and Southeast Asia.

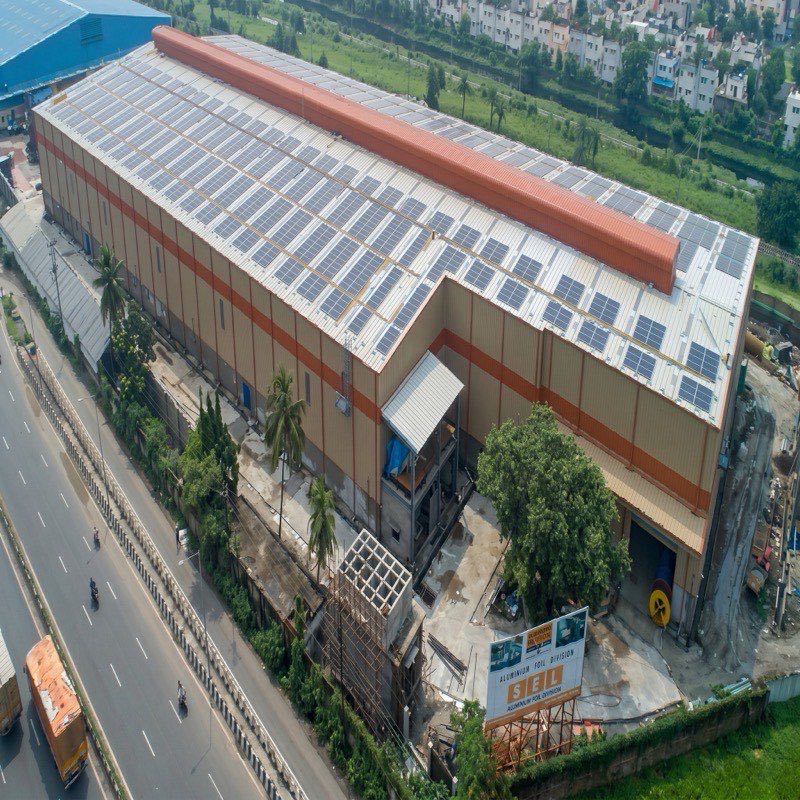

Figure 1. Heavy duty industrial storage shed integrated with manufacturing plant, aerial view.

1. Why a Heavy Duty Industrial Storage Shed Is Different

Unlike a standard distribution warehouse, a heavy-duty Industrial Storage Shed must absorb vibration from machinery, support 1-100 t overhead cranes, and carry mezzanine live loads up to 2 t/m². Meituo's portal-frame system uses thicker H-section primary members, crane runway beams designed per CMAA 70 / FEM 1.001, and engineered moment connections — producing a building that is structurally indistinguishable from a heavy manufacturing plant.

2. Standard Engineering Envelope of the Heavy Duty Steel Warehouse

Every Heavy Duty Steel Warehouse is verified against international codes (GB 50017, Eurocode 3, AISC 360, IS 800, SBC 306) with full 3D finite-element analysis including crane fatigue checks. The table below summarizes the standard configuration; every parameter is fully customizable.

3. Steel Mezzanine Warehouse — Double Your Floor Area

An engineered Steel Mezzanine Warehouse effectively doubles the usable floor area within the same footprint. Meituo mezzanines are bolted modular systems with 0.5-2 t/m² live load capacity, integrated stairs, goods lifts and OSHA-compliant guard rails. Typical applications: VNA racking on ground floor + light goods picking on mezzanine, or production lines below with QC labs and offices above.

Figure 2. Heavy duty steel warehouse interior with overhead crane runway and integrated mezzanine.

4. Manufacturing Storage Building — Production and Inventory Under One Roof

For modern manufacturers, separating production and storage into two buildings adds material-handling cost and ties up land. Meituo's Manufacturing Storage Building concept consolidates production lines, raw-material storage, finished-goods warehouse and office mezzanine into one column-free portal-frame envelope. This typically reduces total project footprint by 20%-30% and slashes inter-building material flow.

5. Multi Story Steel Warehouse — Vertical Density on Constrained Sites

On constrained urban or port-side sites, a Multi Story Steel Warehouse is the only viable solution. Meituo designs 2-4 level steel-framed warehouses with reinforced composite slabs, goods lifts, fire-rated separations and vehicle ramp access. Each level can be configured for different uses — e.g. cross-dock on level 1, ambient storage on level 2, e-commerce mezzanine on level 3.

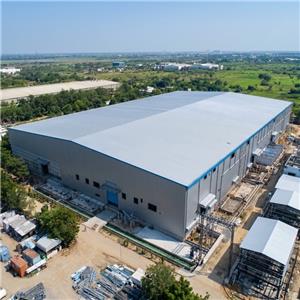

Figure 3. Multi-level steel warehouse integrated with on-site manufacturing facility.

6. Project Delivery Workflow

• Step 1 — Operational Brief: Share equipment list (cranes, machinery), mezzanine usage, floor loads and racking type; we revert within 24 hours with a layout study and budget.

• Step 2 — Detailed Design: Full 3D BIM in Tekla / STAAD.Pro including crane fatigue analysis and mezzanine load calculations.

• Step 3 — Fabrication: CNC cutting, robotic welding (UT-tested heavy welds), shot blasting Sa 2.5, three-coat anti-corrosion painting.

• Step 4 — QC & Loading: 100% UT/MT inspection of crane runway welds + trial pre-assembly before container loading.

• Step 5 — Site Installation: Optional EPC crew or on-site supervisor; crane runway alignment within ±3 mm tolerance.

7. Frequently Asked Questions (FAQ)

Q1. What overhead crane capacity can the Industrial Storage Shed support?
Standard configurations support 1-50 t single-girder and up to 100 t double-girder overhead cranes, designed per CMAA 70 or FEM 1.001 standards. Higher capacities (up to 200 t) are available on request.

Q2. Can the Heavy Duty Steel Warehouse handle multiple cranes simultaneously?
Yes. We routinely design buildings with 2-4 parallel crane runways at different elevations, or tandem cranes on the same runway, with full collision-zone analysis.

Q3. What live load can the Steel Mezzanine Warehouse support?
Standard mezzanines are designed for 0.5 t/m² (light office) to 2.0 t/m² (heavy storage). Higher loads (up to 5 t/m²) are possible with composite floor decks.

Q4. How long does a 10,000 m² Manufacturing Storage Building take to deliver?
Typical timeline: 3-4 weeks design, 45-55 days fabrication, sea freight per destination, 75-100 days site erection (including crane runway alignment). Total: 5-7 months turnkey.

Q5. Can you design a Multi Story Steel Warehouse with vehicle ramp access to each level?
Yes. We design helical or straight ramp systems supporting trucks up to 18 t GVW per level, with engineered ramp slabs and dock-door arrays on each floor.

Q6. Do you supply only the structural steel or full turnkey?
Both options are available. Most heavy-duty clients choose our turnkey package including primary frame, crane runway beams, overhead cranes, mezzanine, dock equipment, fire-fighting and racking.

Q7. What seismic and wind loads can the structure handle?
Standard design covers up to 8-degree seismic intensity (GB 50011 / IS 1893 / IBC) and 1.10 kN/m² wind (typhoon zones). Site-specific loads are calculated per local code.

8. Request a Heavy Duty Industrial Storage Shed Proposal

Ready to plan your next Industrial Storage Shed project? Send us your site dimensions, equipment list, mezzanine usage and floor loads. Our engineering team will revert within 24 hours with a tailored proposal including 3D rendering, crane runway analysis, BOQ and CIF/FOB pricing.
