Insulated Cold Storage Steel Warehouse for Food and Pharmaceutical Industries

Insulated Cold Storage Steel Warehouse — Engineered for Food, Pharma and Cold-Chain Logistics

A purpose-built Cold Storage Warehouse is a temperature-controlled fortress that protects perishable inventory worth millions. Meituo designs and fabricates Insulated Steel Warehouse systems for food manufacturers, pharmaceutical distributors, fresh produce hubs and cold-chain 3PL operators. Every Refrigerated Warehouse Building we deliver is engineered for thermal performance, hygiene compliance and 50-year structural durability.

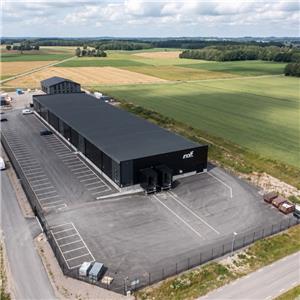

Figure 1. Insulated cold storage warehouse with continuous PU cladding and vapor-barrier sealing.

1. Why a Purpose-Built Cold Storage Warehouse Matters

Retrofitting a standard warehouse for refrigeration costs 2-3 times more than building a purpose-engineered Cold Storage Warehouse from scratch, and rarely achieves the same thermal efficiency. Meituo cold storage envelopes feature continuous vapor barriers, thermally broken doors, insulated dock seals and certified panel-joint detailing — reducing refrigeration load by 25%-40% and slashing long-term energy bills.

2. Standard Engineering Envelope of the Meituo Insulated Steel Warehouse

Every Insulated Steel Warehouse is verified against international codes (GB 50017, Eurocode 3, AISC 360, ISO 22000, HACCP, GDP) and full thermal-bridging analysis. The table below summarizes our standard configuration; every parameter is fully customizable to your cold-chain profile.

3. Multi-Zone Refrigerated Warehouse Building Design

A modern Refrigerated Warehouse Building rarely operates at a single temperature. Meituo's modular envelope supports independent rooms for frozen (-25 °C), chilled (+2 to +4 °C), fresh (+8 °C) and ambient zones within one building — each with its own door, dock and refrigeration loop. Inter-room insulated partitions and air-locked dispatch lobbies prevent thermal contamination and condensation.

Figure 2. Multi-zone insulated steel warehouse interior with thermally broken partitions.

4. Cold Chain Steel Building — Compliance, Hygiene and Traceability

For exporters serving regulated markets (EU, US FDA, GCC SFDA, China NMPA), our Cold Chain Steel Building package includes documented compliance with HACCP, GMP, GDP, FSSC 22000 and BRC. Smooth-finish panels, coved skirting details, sealed penetrations and 21 CFR-compatible coatings make cleaning, inspection and audit straightforward.

5. Freezer Warehouse Construction — Energy and Carbon Optimization

Freezer Warehouse Construction at the -25 °C tier consumes the most refrigeration energy in any cold-chain network. Meituo addresses this with continuous vapor barriers, thermally broken structural connections, LED motion-sensor lighting and pre-engineered solar PV-ready roofs. Many of our clients report 30%-45% lower kWh per pallet position versus retrofitted concrete warehouses.

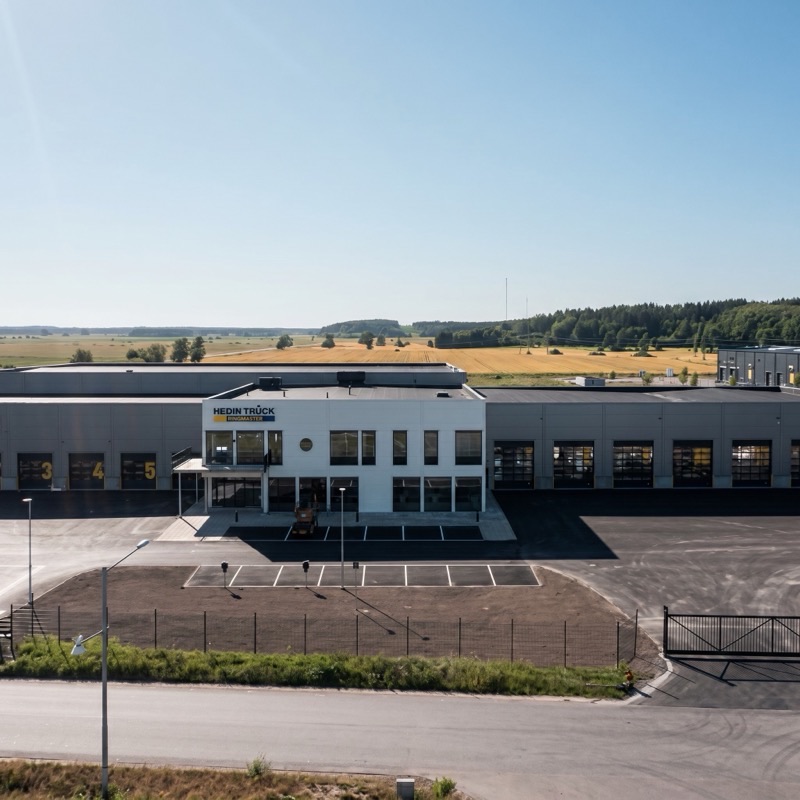

Figure 3. Freezer warehouse construction with heated docks and continuous insulation.

6. Project Delivery Workflow

• Step 1 — Cold-Chain Brief: Share target temperatures, throughput, SKU profile and refrigerant; we revert within 24 hours with thermal load study and budget.

• Step 2 — Detailed Design: Full 3D BIM with thermal bridging analysis, vapor-barrier detailing and engineer-stamped calculations.

• Step 3 — Fabrication: CNC cutting, robotic welding, shot blasting Sa 2.5; PU panels foamed in continuous lines for uniform density.

• Step 4 — QC & Loading: Panel U-value sampling, weld UT/MT inspection, trial pre-assembly before container loading.

• Step 5 — Site Installation: Optional EPC crew or on-site supervisor; commissioning protocol per refrigeration package vendor.

7. Frequently Asked Questions (FAQ)

Q1. What insulation thickness do you recommend for a -25 °C frozen room?
For frozen storage at -25 °C in a tropical or subtropical climate, we recommend 180-200 mm PU panels on walls and 200 mm on the roof, with continuous vapor barriers and thermally broken structural connections.

Q2. Can the Insulated Steel Warehouse meet HACCP / GMP / GDP standards?
Yes. Our standard panel finish, joint detailing, coved skirting and certified coatings comply with HACCP, GMP, GDP, FSSC 22000 and BRC. We can provide third-party test reports on request.

Q3. Do you supply the refrigeration system as well?
We integrate with your preferred refrigeration vendor (ammonia, CO&sub2; transcritical, glycol or HFC). We provide pre-engineered evaporator brackets, pipe routes, electrical risers and a coordinated 3D model to your refrigeration consultant.

Q4. What floor system do you recommend for a Refrigerated Warehouse Building?
For frozen rooms we provide insulated raft foundations with heated underslab loops to prevent frost heave. For chilled rooms a standard insulated slab is adequate.

Q5. How long does a 5,000 m² Cold Chain Steel Building take to deliver?
Typical timeline: 4 weeks design, 45-55 days fabrication, sea freight per destination, 60-80 days site erection (panel sealing included). Total: 4.5-6 months turnkey.

Q6. Can you design a multi-temperature warehouse with frozen, chilled and ambient zones?
Yes. Multi-zone envelopes are our specialty. Each zone gets its own door, dock, refrigeration loop and air-locked dispatch lobby to prevent thermal contamination.

Q7. What anti-corrosion treatment is included for coastal sites?
For coastal cold storage we upgrade to hot-dip galvanizing on primary frames and add an additional polyurethane topcoat (240+ µm total), extending design life in ISO C5-M corrosivity environments.

8. Request a Cold Storage Warehouse Proposal

Ready to plan your next Cold Storage Warehouse project? Send us your site dimensions, target temperatures, throughput and compliance scope. Our engineering team will revert within 24 hours with a tailored proposal including 3D rendering, thermal load study, BOQ and CIF/FOB pricing.
