Customized Prefabricated Industrial Steel Structure Workshop for Modern Logistics and Manufacturing
Brand MEITUO
Product origin Shenyang, China
Delivery time 25-35 Days after Drawing Approval
Supply capacity 2000 Tons per Month
Meituo prefabricated steel structure workshops feature Q355B high-strength portal frames, insulated sandwich-panel cladding, and 25-35 day delivery. Engineered to Eurocode, AISC and ASTM standards for global industrial, logistics and manufacturing projects.
Customized Prefabricated Industrial Steel Structure Workshop — Built for Modern Logistics and Manufacturing
The global demand for scalable, durable, and cost-efficient industrial space is reshaping how factories and warehouses are built. The Steel Structure Workshop supplied by Meituo is engineered with high-strength Q355B steel, modular portal frames, and energy-efficient cladding systems — making it the preferred solution for international manufacturers, logistics operators, and contractors who need to commission large-span industrial buildings on time and on budget.

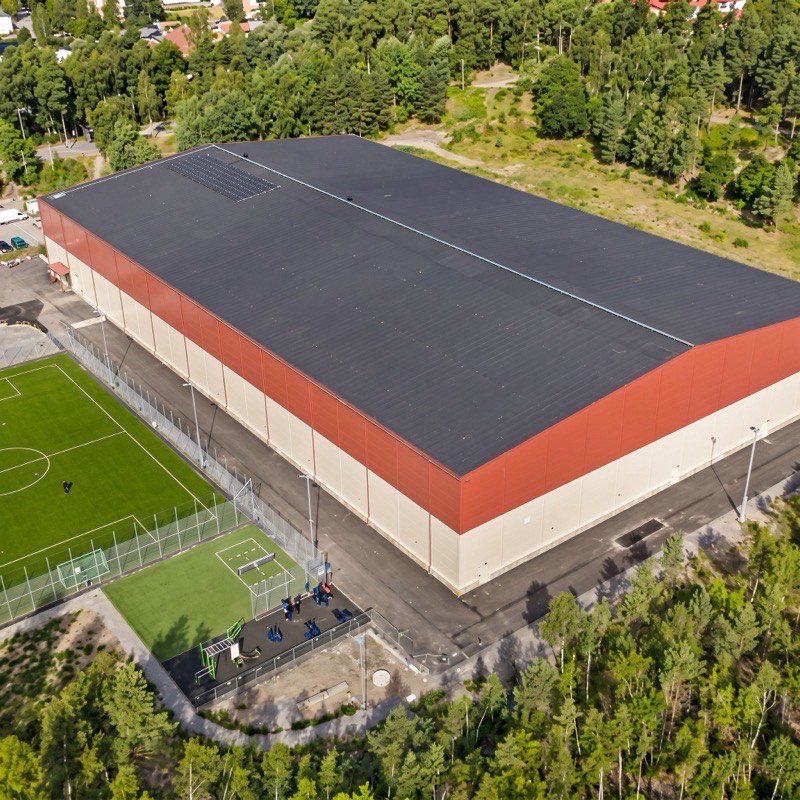

Figure 1. Large-span prefabricated steel structure workshop with insulated wall panels and skylight system.
1. Why a Prefabricated Steel Building Outperforms Traditional Construction
Compared with concrete-and-brick construction, a Prefabricated Steel Building can be erected 40%-60% faster, with significantly lower foundation costs and far less on-site labor. Every primary member is shop-fabricated under CNC control, then bolted together on site — eliminating the weather delays and quality variation that plague traditional construction. For investors, this means earlier production start-up and a measurable improvement in project ROI.
2. Engineering Specifications of the Meituo Steel Structure Workshop
Every Industrial Steel Warehouse we deliver is designed against international codes (GB 50017, Eurocode 3, AISC 360, ASCE 7) and verified through full 3D structural analysis. The table below summarizes the standard engineering envelope — any parameter can be customized to your site conditions.
| Parameter | Standard Range | Remarks |
|---|---|---|
| Span (clear width) | 12 m – 60 m | Single span or multi-span portal frame |
| Eave Height | 6 m – 24 m | Tailored for overhead crane operation |
| Bay Spacing | 6 m / 7.5 m / 9 m | Optimized for purlin and panel modulus |
| Main Steel Grade | Q355B / Q235B / ASTM A572 | Welded H-section, shot-blasted Sa 2.5 |
| Roof & Wall Cladding | EPS / PU / Rockwool / Glasswool sandwich panel | Thickness 50-150 mm, fire rating up to A-class |
| Wind Load | 0.30 – 1.10 kN/m² | Designed for typhoon & hurricane zones |
| Snow Load | 0.30 – 2.50 kN/m² | Verified for Nordic & Alpine climates |
| Seismic Resistance | Up to 8-degree intensity | Per GB 50011 / IBC seismic provisions |
| Crane Capacity | 1 t – 100 t | Single or double-girder overhead crane |
| Design Service Life | 50 years | Hot-dip galvanized secondary members |
3. Maximize ROI with an Industrial Steel Warehouse
An optimized Industrial Steel Warehouse does more than just protect inventory — it accelerates throughput and reduces total cost of ownership. The wide-span portal-frame layout eliminates internal columns, freeing the entire floor plate for racking, AGV traffic, and production lines. Insulated cladding maintains stable internal temperatures, reducing HVAC consumption by up to 35% over uninsulated steel sheds.
Figure 2. Column-free interior space optimized for storage racking and production layout.
4. Sustainability and Durability in Metal Building Construction
Modern Metal Building Construction is one of the most sustainable building methods available today. More than 90% of the steel used in our workshops is recyclable at end-of-life, and our shop-prefabricated process generates up to 70% less construction waste than cast-in-place concrete. All secondary members — C/Z purlins, sag rods, tie braces — are hot-dip galvanized to ISO 1461, delivering proven corrosion protection in coastal, humid, or chemically aggressive environments.
5. Fully Customized Steel Shed Solutions for Global Projects
Whether you need a Custom Steel Shed for a 500 m² workshop or a 50,000 m² logistics park, Meituo delivers a single-source EPC package: structural design, fabrication, surface treatment, packing, shipping, and on-site installation supervision. We have completed projects across Europe, the Middle East, Africa, Southeast Asia, and South America, and every project is delivered with full engineering calculation books, shop drawings, and a 50-year structural warranty letter.

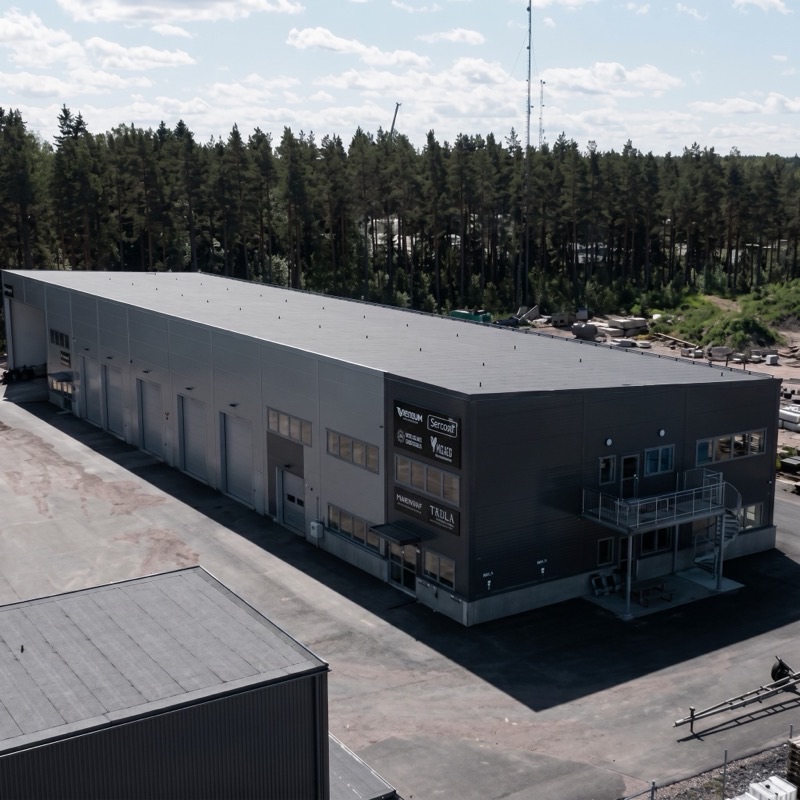

Figure 3. Integrated warehouse-plus-office configuration with architectural facade treatment.
6. Quality Assurance & Project Delivery Workflow
Step 1 — Inquiry & Concept Design: Submit your site dimensions, loading conditions, and intended use. Our engineers respond within 24 hours with a concept layout and budgetary quotation.
Step 2 — Detailed Design: Full 3D model in Tekla / STAAD.Pro, complete with structural calculations stamped by registered engineers.
Step 3 — Fabrication: CNC cutting, robotic welding, shot blasting (Sa 2.5), and three-coat anti-corrosion painting in our 80,000 m² ISO 9001-certified factory.
Step 4 — QC & Pre-Assembly: 100% UT/MT inspection of critical welds and trial pre-assembly before container loading.
Step 5 — Delivery & Installation Support: Sea or land transport with full export documentation; on-site supervisors available worldwide.
7. Frequently Asked Questions (FAQ)
Q1. What is the typical lead time for a Steel Structure Workshop?
Standard lead time is 25-35 working days after deposit and drawing approval. For projects above 2,000 tons, we operate parallel production lines to keep the schedule under 45 days.
Q2. Can you design a Prefabricated Steel Building to local codes (Eurocode, AISC, ASTM, NBC)?
Yes. Our in-house engineering team is experienced with Eurocode 3, AISC 360, ASCE 7, NBC (India), SBC (Saudi), and AS/NZS standards. We provide stamped calculation books on request.
Q3. What is the design service life of the steel structure?
Our standard design service life is 50 years. With the optional hot-dip galvanizing package, the structure can perform for 70+ years in standard atmospheric conditions.
Q4. Do you supply only the steel frame, or a complete turnkey package?
Both options are available. Most clients choose our turnkey package including primary frame, secondary members, cladding panels, doors, windows, skylights, gutters, downpipes, ventilators, and overhead cranes.
Q5. How are the components packed and shipped overseas?
Primary members are bundled with steel strapping and protected with anti-rust film; bolts, nuts, and accessories are packed into wooden crates with a detailed packing list. Containers are loaded under engineer supervision to minimize damage in transit.
Q6. Can I send my own architect drawings for fabrication?
Absolutely. We accept client-supplied drawings in DWG, PDF, IFC, or Tekla format. Our detailers will convert them into shop drawings and re-issue for your final approval before fabrication.
Q7. What after-sales support do you provide?
We offer remote installation guidance via video call, optional on-site supervisor dispatch, and a 50-year structural warranty letter. Spare parts and replacement panels can be shipped within 7 working days.
8. Request a Free Quotation
Ready to start your next project? Send us your site dimensions, intended use, design loads, and target completion date. Our engineering team will revert within 24 hours with a tailored proposal for your Steel Structure Workshop — including a 3D rendering, bill of materials, and CIF/FOB pricing.
