Flat Pack Container House
Brand MEITUO
Product origin China
1. The Temporary flat pack House we produce can be built within a few hours, saving construction time and labor costs.
2. The Temporary flat pack House we produce adopts a modular design and can be freely spliced and stacked to meet various space requirements.
3. The Temporary flat pack House we produce adopts a high-strength steel structure, which is wind-resistant and earthquake-resistant and can adapt to various climate environments.

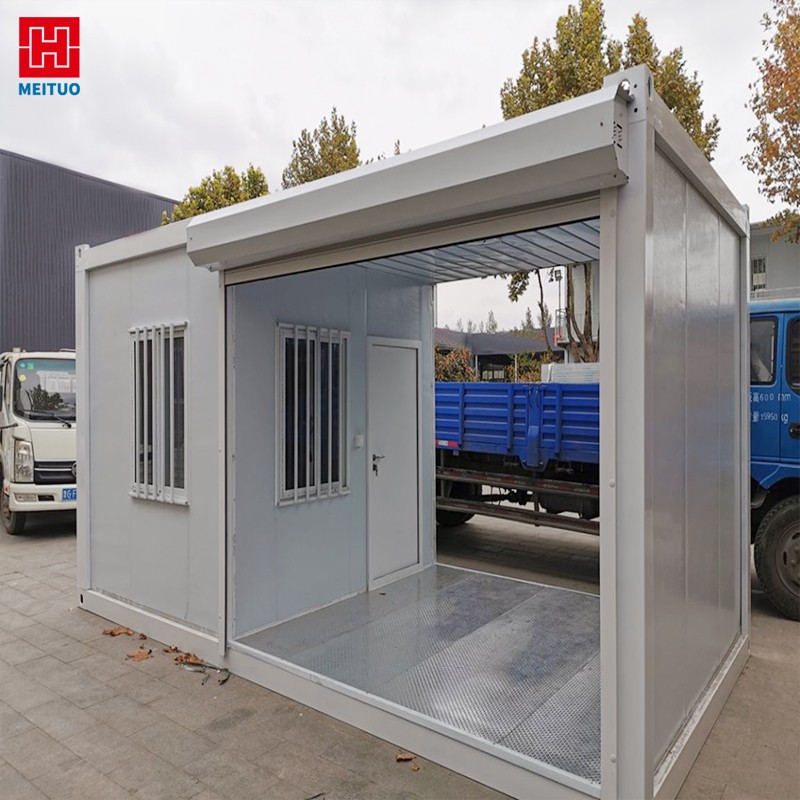

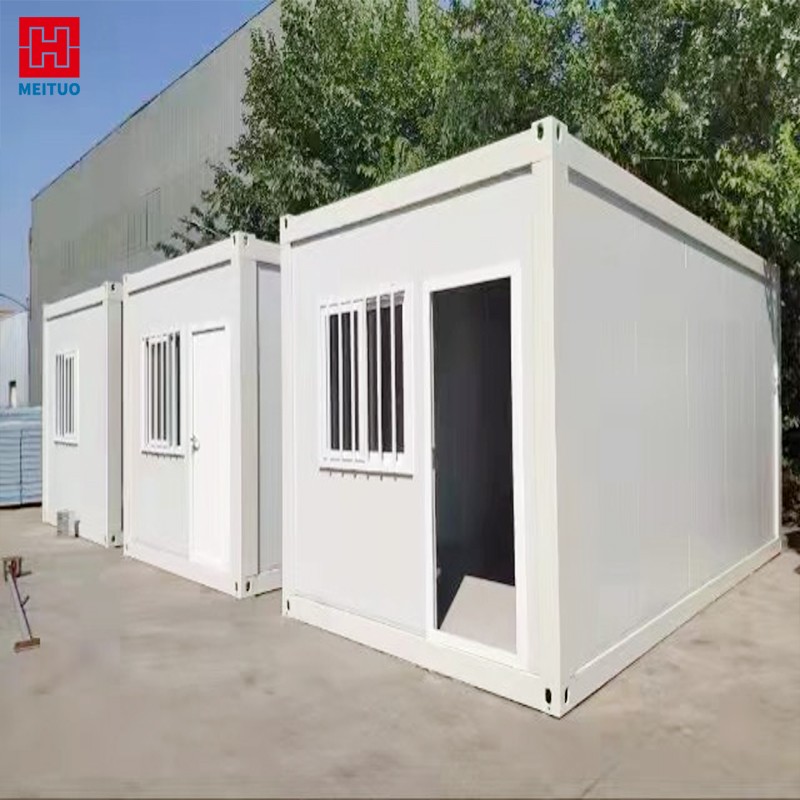

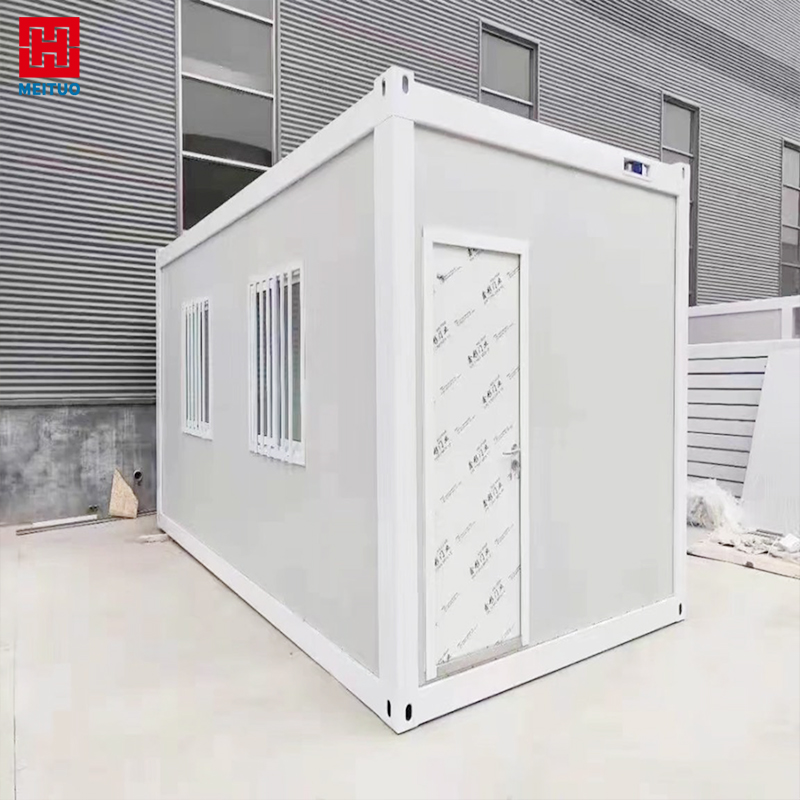

Product introduction of Temporary flat pack House:
The Temporary flat pack House we produce is a modular building product that combines practicality and flexibility. It is widely used in construction site dormitories, temporary offices, post-disaster resettlement, outdoor camps and other scenarios. The prefab shipping container home structure is made of high-strength steel, has good wind and earthquake resistance, and can adapt to various complex environments. Prefab shipping container home is prefabricated in the factory and has standardized design, which can achieve fast transportation and on-site assembly, greatly shortening the construction period. The prefab shipping container home we produce supports multi-unit splicing and stacking to meet different space requirements. It is an ideal choice for modern temporary construction and flexible space construction.
Product advantages of Temporary flat pack House:
The Temporary flat pack House we produce has a stable structure, convenient installation and efficient transportation. The modular design of prefab shipping container home allows multiple units to be flexibly combined and stacked to meet the space requirements of different scenarios; all parts of prefab shipping container home are prefabricated in the factory and only require simple assembly on site, which significantly saves time and labor costs; the whole prefab shipping container home can be disassembled and re-used many times, which is green and environmentally friendly, suitable for long-term or temporary use, and is an ideal solution for modern temporary construction projects and flexible space construction.
Product parameters of 20 ft flat pack container module:
| Fundamental Information of tiny prefabricated house | |
| Exterior Size(mm): | L6055*W 2438*H 2896mm(14.76㎡) |
| Interior Size(mm): | L5848*W 2228*H 2520mm(14.03㎡) |
| Folded Size(mm): | L6055*W2438*H720mm |
Weight(KG): | 1500kg |
| Insulation of tiny prefabricated house | |

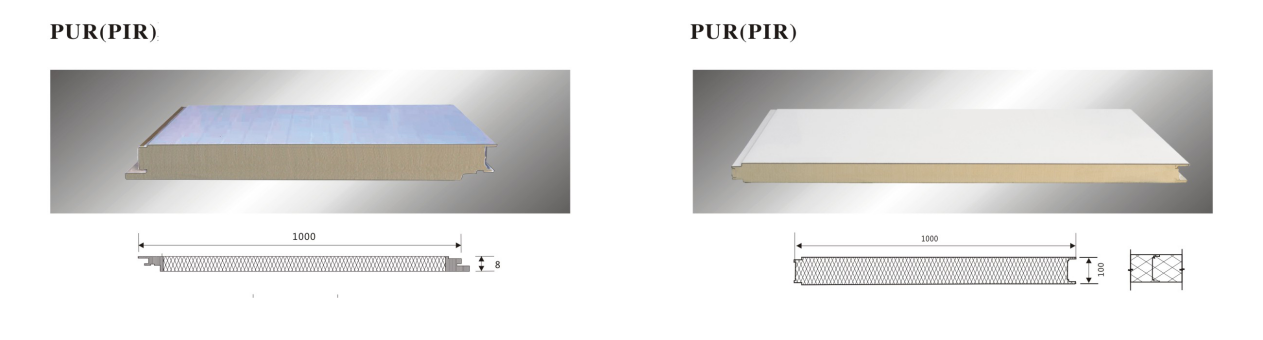

| Wall of tiny prefabricated house: | double sided iron sheet 0.35/0.35mm, rock wool bulk densily 80kg/m³, 75mm composite board.and other thickness optional |
| Door of container prefabricated house: | High-grade steel door,840*2035mm |
| Window: | plastic steel anti-theft window/ aluminum alloy 800*1100mm double glass |

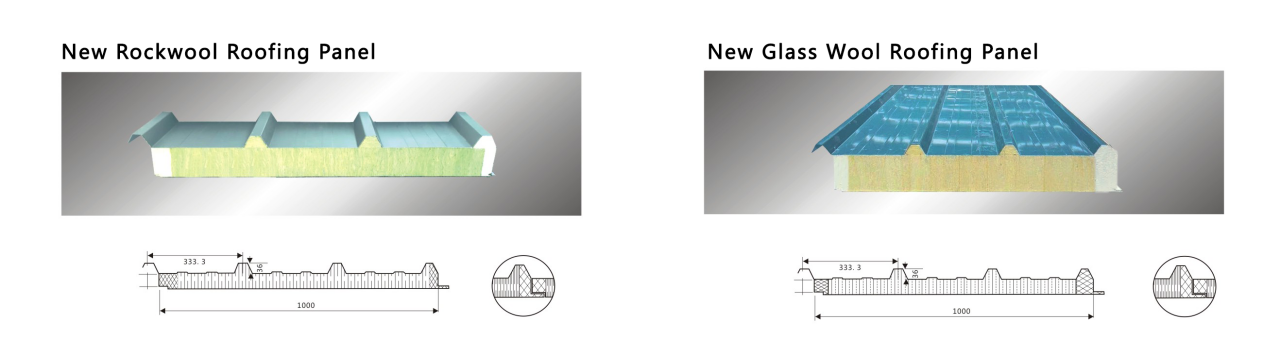

| Roof: | 0.35mm color steel single tile+glass wool/rock wool optional |
| Floor: | 18mm cement fiber board+1.6mm plastic floor, thickness optional |
| Loading quantity: | 6 units/40' HQ |
Frame: | 2.0mm,2,3mm,2.5mm,2.7mm,3.0mm,3.5mm |
Product application of Temporary flat pack House:

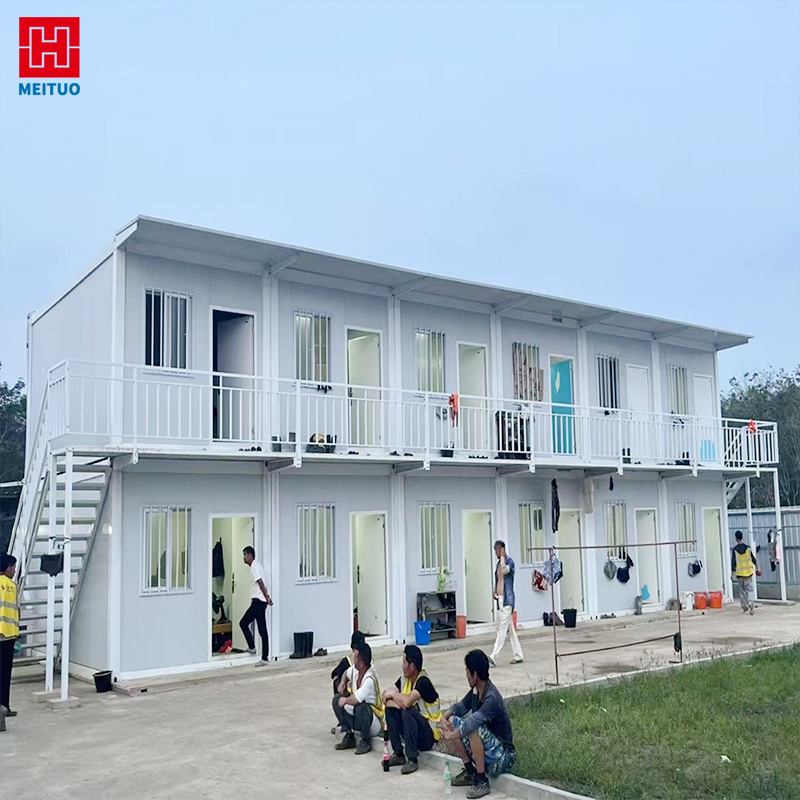

The Temporary flat pack House we produce can be widely used in temporary dormitories, offices, conference rooms, canteens, toilets and other temporary facilities at construction sites; it is also suitable for isolation rooms, resettlement houses and temporary medical stations in emergency rescue; in addition, Prefab Shipping Container Home can also be used in outdoor commercial places such as mobile shops, exhibition halls, cafes, ticket booths, etc.; in the fields of education and medical care, Flat Pack Modular Container House can be used as temporary classrooms, laboratories, and treatment rooms; Flat Pack Modular Container House is also commonly used in field exploration camps, border checkpoints, military bases, tourist reception stations, exhibition rooms, etc., to meet the diverse needs of various types of temporary and movable buildings.

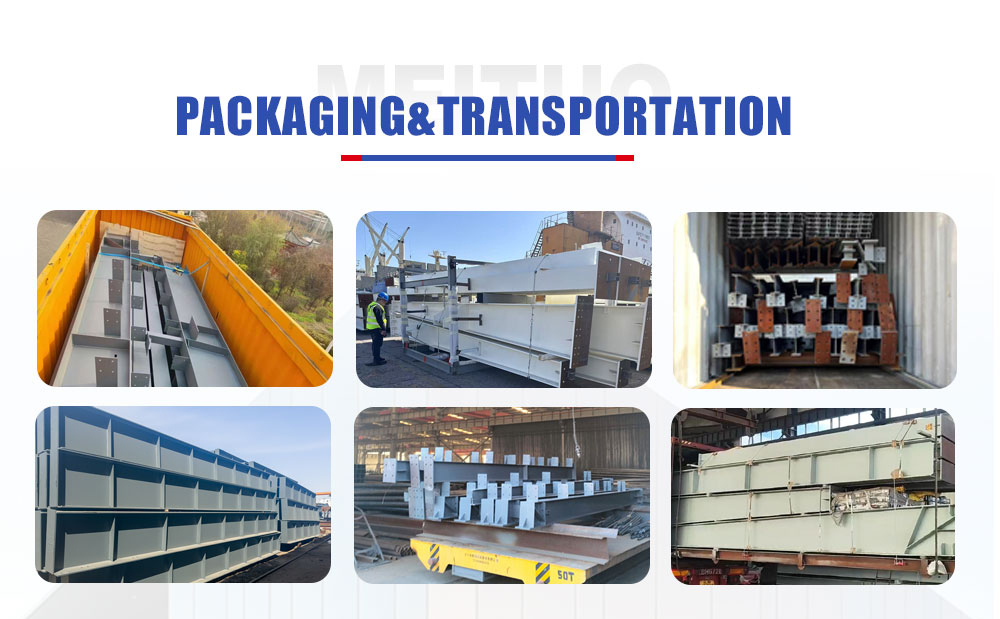

Packaging and transportation of 20 ft flat pack container module:
The 20 ft flat pack container modules we produce are packaged in a standardized packaging method. All structural parts, wall panels, doors and windows and accessories are neatly and flatly loaded into a steel chassis frame to form a complete transportation unit. The size of each 20 ft flat pack container module is consistent with that of a standard container, which is convenient for loading and unloading and international shipping. 20 ft flat pack container modules can be stacked during transportation, saving space and logistics costs. They are suitable for various transportation methods such as sea and land transportation, ensuring that 20 ft flat pack container modules are safe and intact during transportation and quickly delivered to the installation site.
Why choose us:
We offer professional and free design services tailored to your flat pack modular container house needs. Once we receive your requirements of flat pack modular container house, our experienced design team can provide you with a complete proposal and layout of flat pack modular container house within just 3 days. Whether you need a simple temporary structure or a customized permanent facility, we ensure the design meets both functional and aesthetic expectations.

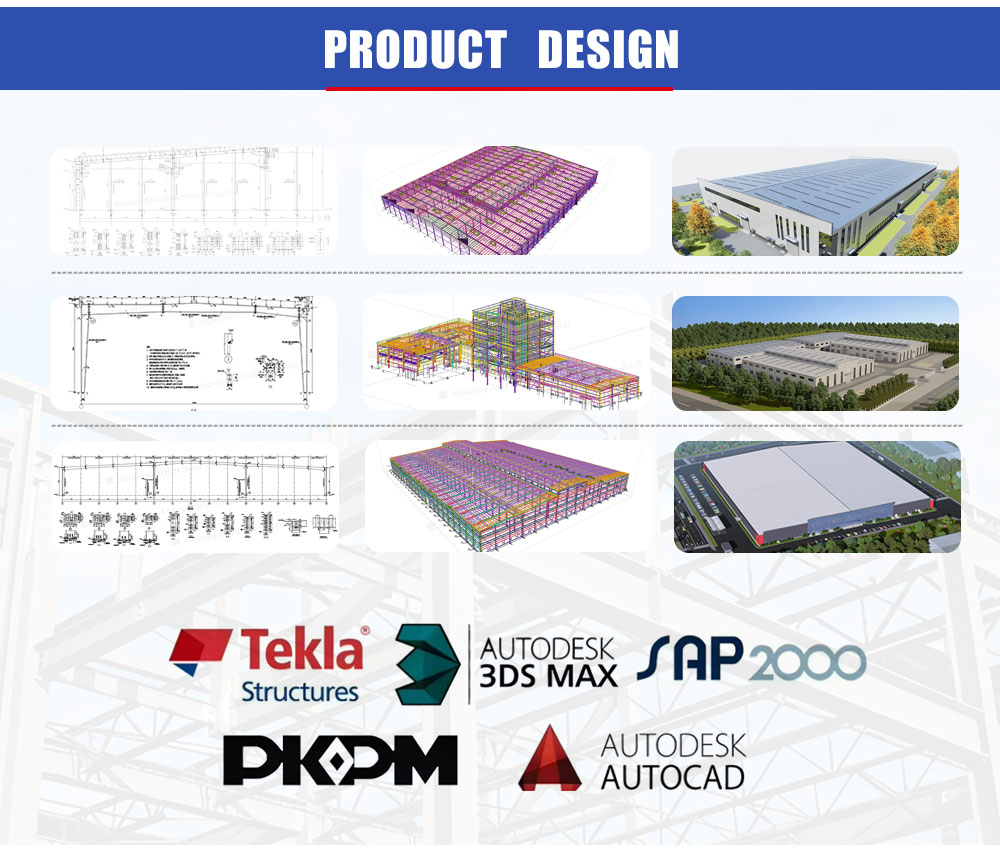

Steel Building Design Service:
MEITUO delivers cutting-edge steel structure solutions that comply with regional construction regulations and premium quality benchmarks. Through detailed 3D visualizations, we transform your concepts into realistic models, ensuring clarity at every stage. This streamlined approach—from consultation to design and pricing—reflects our commitment to precision and partnership in realizing your project goals.
Our custom flat pack modular container house services include designing and manufacturing wall panels and other materials in-house, offering you the best value with competitive pricing for your project.
About us:
With a focus on quality and customer satisfaction, Shenyang Meituo Steel Structure provides tailored flat pack modular container house solutions. From design to installation, we work closely with our clients to deliver efficient and durable products that meet their specific needs.
