Portal Steel Frame Workshop Shed — Pre Engineered Industrial Building for Global Buyers

When sourcing a Portal Steel Frame Workshop Shed, procurement managers face a critical trade-off: minimize capital outlay without compromising structural integrity over a 30-year operational window. Our engineered solution resolves this trade-off through tapered-section main frames, factory-precision fabrication, and modular bolt-up assembly — delivering a finished Industrial Steel Workshop envelope at 30–45% lower total installed cost compared to reinforced concrete alternatives.

Unlike generic shed kits sold by distributors, every Portal Steel Frame Workshop Shed we manufacture is FEM-analyzed against the buyer's local snow load, wind speed (up to 60 m/s), and seismic zone before a single beam is cut. This engineering-first approach is why facility owners across light manufacturing, automotive servicing, cold-chain logistics, and agricultural processing specify our system as their standard.

Why Buyers Choose This Portal Steel Frame Workshop Shed

1. Clear Span Geometry Maximizes Usable Floor Area

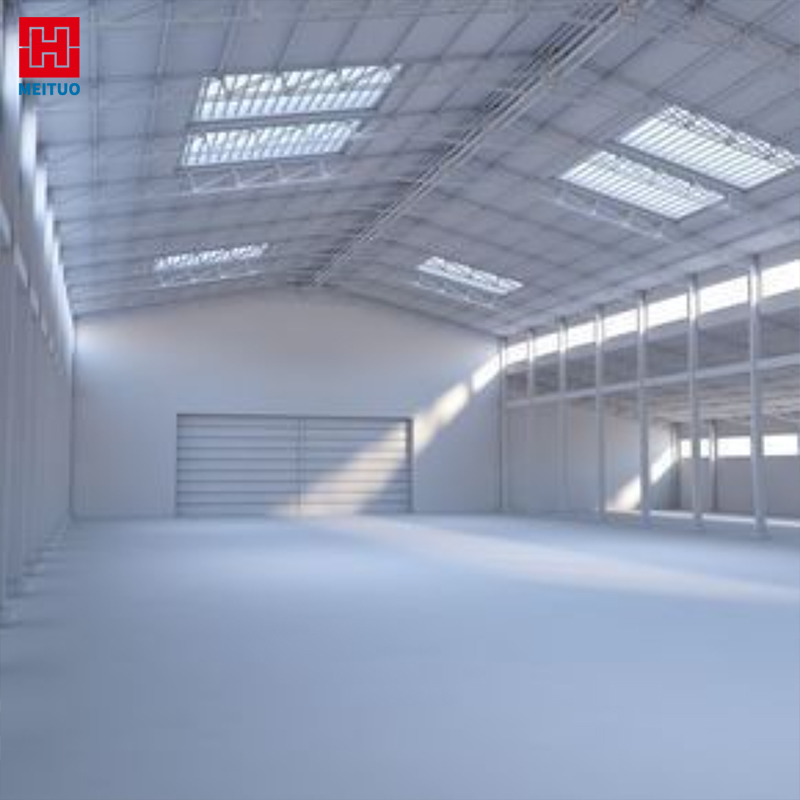

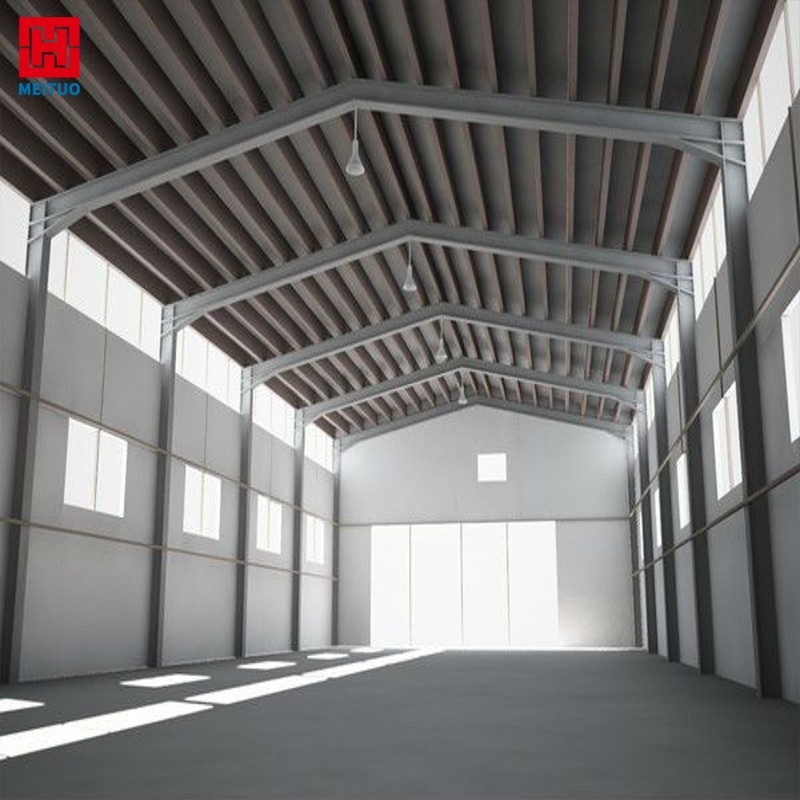

The defining advantage of a Portal Steel Frame Workshop Shed is the absence of internal columns. Our standard Clear Span Warehouse Building configurations reach 18m, 24m, 30m, 36m, and 60m without intermediate supports, freeing up to 100% of the gross floor area for production lines, racking systems, or overhead crane operation. Conventional masonry or concrete-column buildings sacrifice 8–12% of footprint to load-bearing intrusions — a permanent operational tax this Steel Structure Building Shed eliminates.

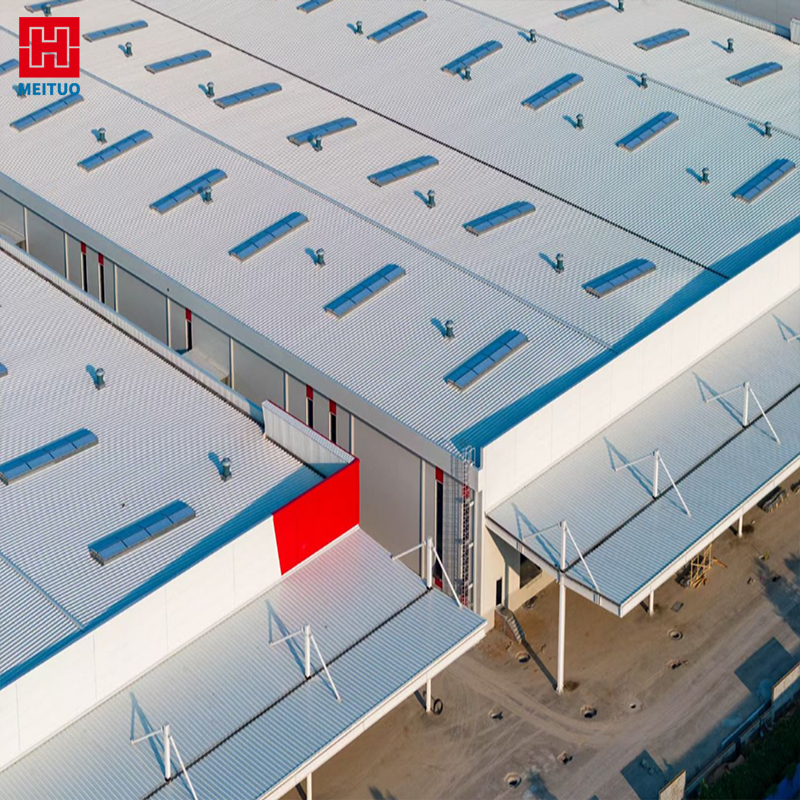

The continuous roofline shown above visualizes exactly why Clear Span Warehouse Building geometry matters at scale: a single uninterrupted span covers the entire distribution floor, allowing truck-dock alignment, racking aisles, and forklift circulation to be planned around operational logic — not around column grids inherited from the building shell.

2. Pre Engineered Manufacturing Compresses Project Timeline

Each Pre Engineered Metal Building component leaves our facility CNC-cut, drilled, welded, and shop-primed under controlled conditions. Bolt holes are matched to ±1 mm tolerance, meaning the on-site crew performs assembly — not fabrication. A 2,000 m² Prefab Factory Building Workshop Shed typically reaches weather-tight enclosure in 30 to 45 days, versus 90–120 days for poured-concrete construction. Faster occupancy translates directly into earlier revenue capture for the end user.

3. Lifecycle Cost Advantage Over Traditional Construction

A Light Steel Structure Shed typically weighs 35–45 kg per square meter, dramatically reducing foundation depth and concrete consumption. Combined with bolt-connected joints (no on-site welding for primary connections), this Build Prefab Factory Shed approach lowers Day-One capital expenditure while keeping future expansion straightforward — additional bays can be appended by extending the rafter line without retrofitting the existing structure.

Technical Specifications — Portal Steel Frame Workshop Shed

The facade detail shown above reflects the dimensional precision expected from a properly engineered Portal Steel Frame Workshop Shed: flush-mounted insulated panels, factory-fitted oversized industrial doors, and a continuous parapet line with zero misalignment between adjacent bays. Every connection point is traceable to its mill certificate and weld inspection record.

Application Scenarios — Where This Steel Structure Building Shed Performs

The aircraft hangar configuration pictured above demonstrates how the same Prefab Factory Building Workshop Shed chassis scales to extreme clear-span and eave-height requirements — a single sliding-door opening wide enough to accommodate a full-size business jet, with no internal column to obstruct aircraft positioning. This Heavy Duty Metal Workshop platform serves a broad spectrum of end-use industries, reconfigured through cladding selection, internal mezzanine integration, and crane-runway provision to fit each operational profile:

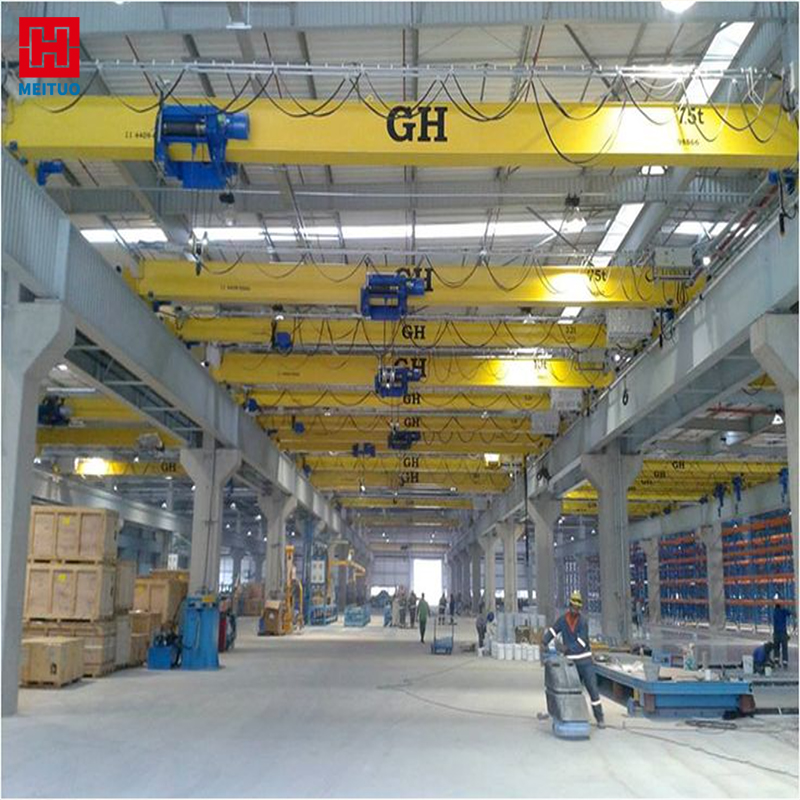

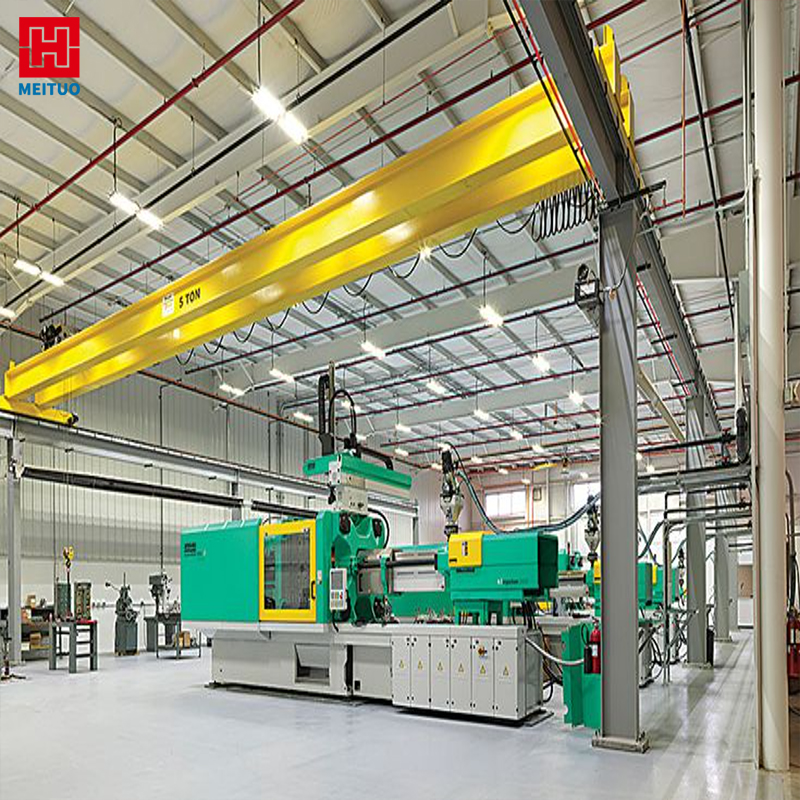

• Automotive & Machinery Manufacturing — overhead crane runways up to 50-ton capacity integrated into the frame design

• Cold Storage & Food Processing — 150 mm PU sandwich panels achieve -25°C interior with vapor-sealed joints

• Logistics & E-commerce Fulfillment — clear spans accommodate 11 m racking aisles and AGV pathways

• Agricultural Processing & Grain Storage — corrosion-resistant coatings handle ammonia and humidity exposure

• Renewable Energy Manufacturing — wide bays house solar module assembly lines and battery test cells

• Aircraft & Marine Hangars — eave heights up to 18 m with sliding-door spans exceeding 30 m

The flexibility of the Prefab Factory Building Workshop Shed platform means a single supplier specification can serve multiple sister-facilities across a buyer's global footprint, reducing engineering review cycles and standardizing maintenance protocols.

Engineering & Quality Assurance Process

Sourcing a Portal Steel Frame Workshop Shed from an unverified supplier exposes the project to under-designed sections, mill-test fraud, and assembly mismatches that surface only after the foundation is poured. Our six-stage quality gate protects buyers from these risks:

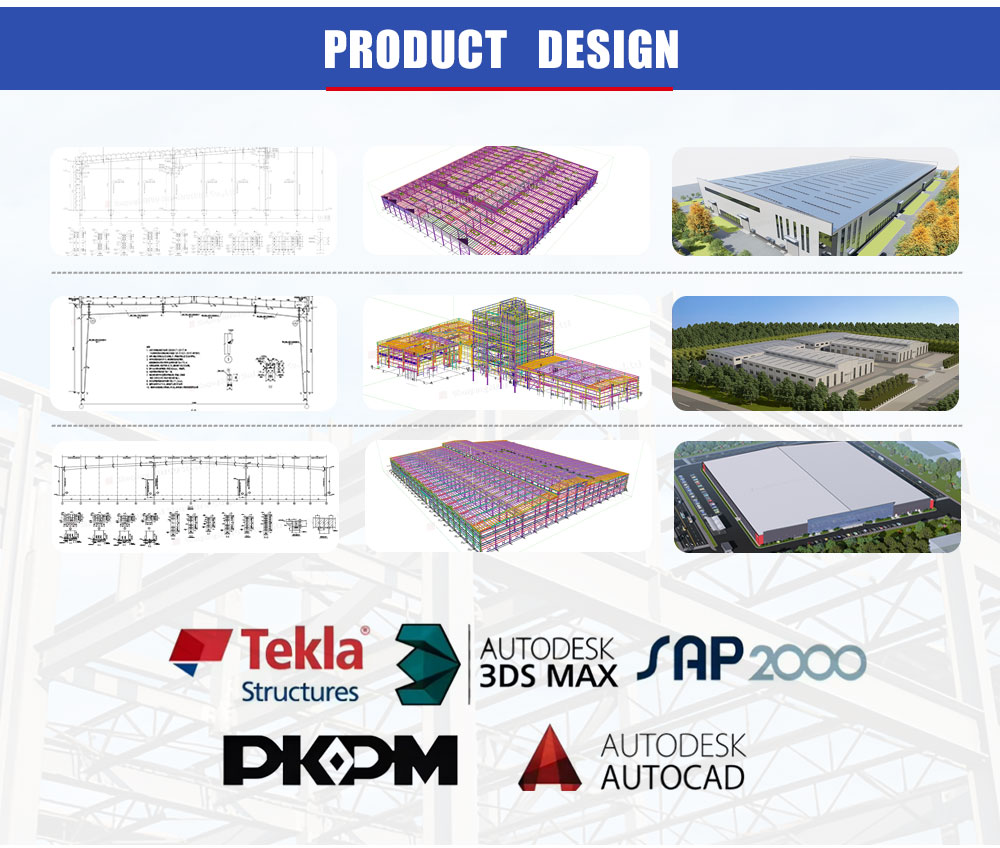

1. Structural FEM Analysis — Tekla Structures + STAAD.Pro modeling against the buyer's site-specific loads

2. Mill Test Certificate Verification — Q355B steel traceable to mill heat number, third-party UT-tested

3. Welding Compliance — AWS D1.1 / ISO 3834-2 certified welders, 100% UT on critical full-penetration welds

4. Surface Treatment — Sa 2.5 shot blasting, hot-dip galvanizing per ASTM A123, three-coat paint system

5. Trial Pre-Assembly — every project bolt-connected in-factory to verify hole alignment before shipment

6. Sea-Worthy Packing — bundle-marked per drawing reference, container-loaded to maximize cubic utilization

What's Included in the Portal Steel Frame Workshop Shed Package

A complete Build Prefab Factory Shed delivery scope eliminates the procurement headache of multi-vendor coordination:

• Tapered welded H-section main rigid frames

• Hot-dip galvanized C/Z secondary purlins and girts

• Roof and wall cladding (single-skin or insulated sandwich)

• Ridge ventilators, gutters, downspouts, and flashings

• Bracing systems (cross-bracing, flange bracing, longitudinal ties)

• Doors (sliding, sectional, roll-up) and window units per drawing

• High-tensile bolts, anchor bolts, and complete fastener kit

• Engineering drawings (foundation, structural, electrical interface)

• Erection manual and remote engineering support

Optional upgrades include integrated overhead crane systems (up to 50T), mezzanine office floors, solar-ready roof reinforcement, and HVAC penetrations engineered into the cladding sequence — converting a basic Industrial Steel Workshop into a turnkey production facility.

Frequently Asked Questions

Q1: What is the realistic lifespan of a Portal Steel Frame Workshop Shed?
A properly engineered and maintained Portal Steel Frame Workshop Shed delivers a 50-year service life. The hot-dip galvanized purlins and three-coat paint system on main frames resist corrosion in C3-category atmospheric environments. Inland buyers can extend this further with periodic re-coating every 12–15 years.

Q2: Can the Prefab Factory Building Workshop Shed be expanded later?
Yes. The bolt-connected modular design allows additional bays to be appended along the longitudinal axis simply by extending the foundation and adding rafter frames. We recommend declaring future expansion intent during the initial design phase so anchor bolts and end-wall bracing are sized accordingly.

Q3: What documentation is provided for permit approval?
Every Pre Engineered Metal Building package ships with stamped structural calculation reports, material mill certificates, weld qualification records, and 2D/3D drawings in DWG and PDF formats — compatible with permitting authorities worldwide.

Q4: How is the Light Steel Structure Shed shipped internationally?
Components are bundle-marked per the erection sequence and loaded into 20'GP / 40'HQ / 40'OT containers depending on member length. A standard 2,000 m² Steel Structure Building Shed typically fits in 6–8 × 40'HQ containers, optimized for sea freight cost.

Q5: What is the minimum order quantity and lead time?
There is no fixed MOQ — we manufacture single-building projects starting at approximately 300 m². Standard lead time is 25–35 working days for fabrication after drawing approval, plus shipping transit to the destination port.

Why Source Your Portal Steel Frame Workshop Shed From Us

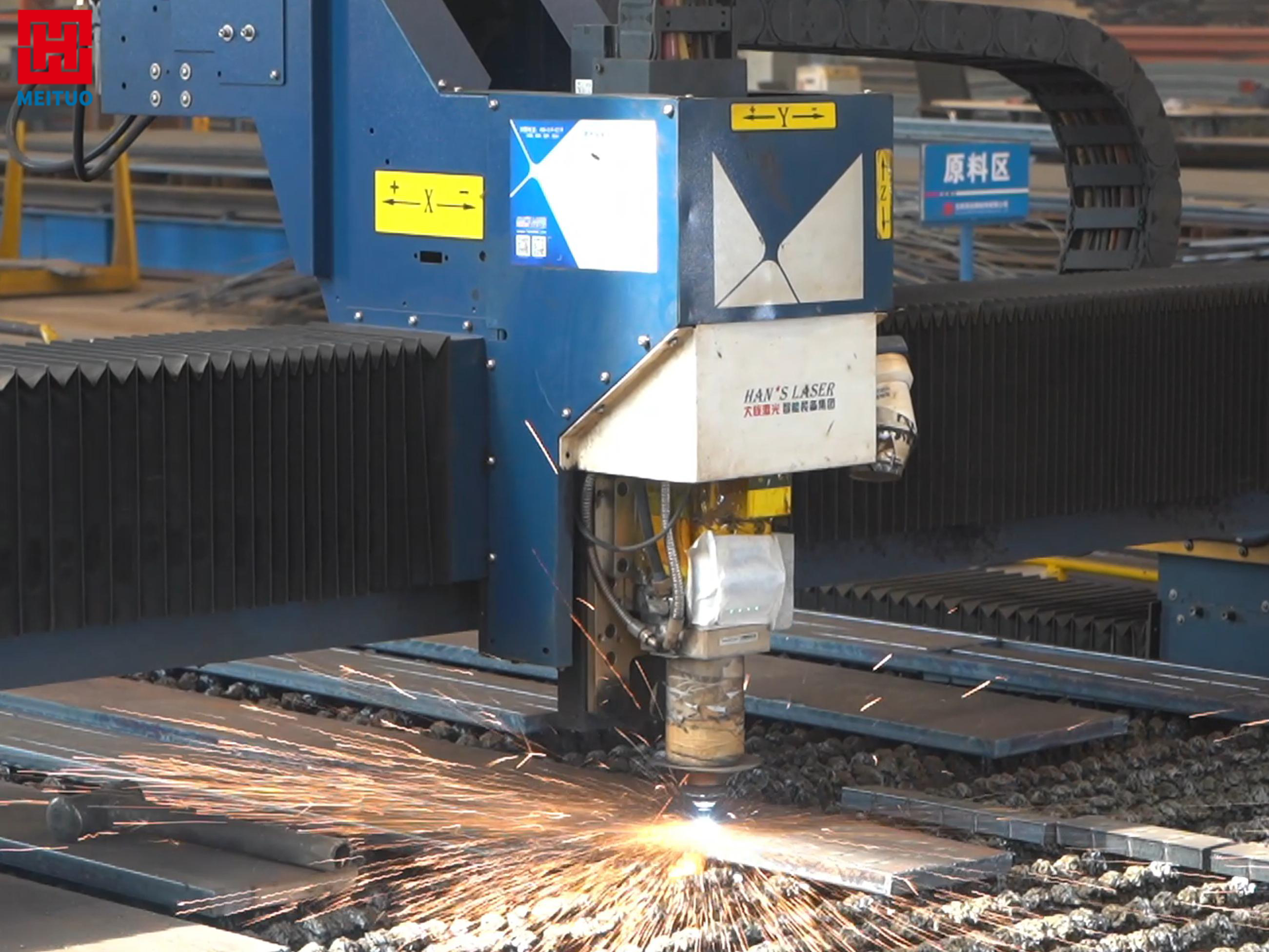

With over a decade of engineering and export experience, our team has delivered Industrial Steel Workshop projects to buyers in more than 60 countries — refining design libraries, packing methods, and erection guidance with every shipment. We invest in shop-floor automation (CNC plasma cutting, automated H-beam welding, robotic blast-and-paint lines) so that every Heavy Duty Metal Workshop leaving our facility meets the same dimensional precision regardless of project size.
