MEITUO specializes in creating innovative steel structure designs that fully comply with local building codes and industry quality standards. As part of our comprehensive service, we offer 3D visual renderings to help you better understand and refine your design concepts. This visual approach is just one element of our thorough consultation, design, and quotation process—reflecting both our professional capabilities and our commitment to working closely with clients to turn their ideas into reality.

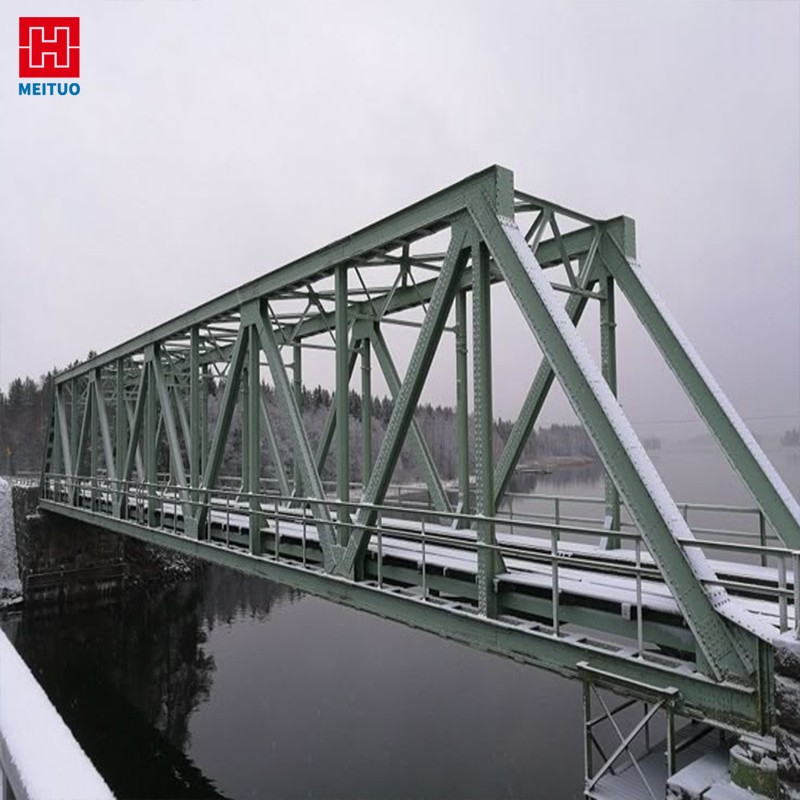

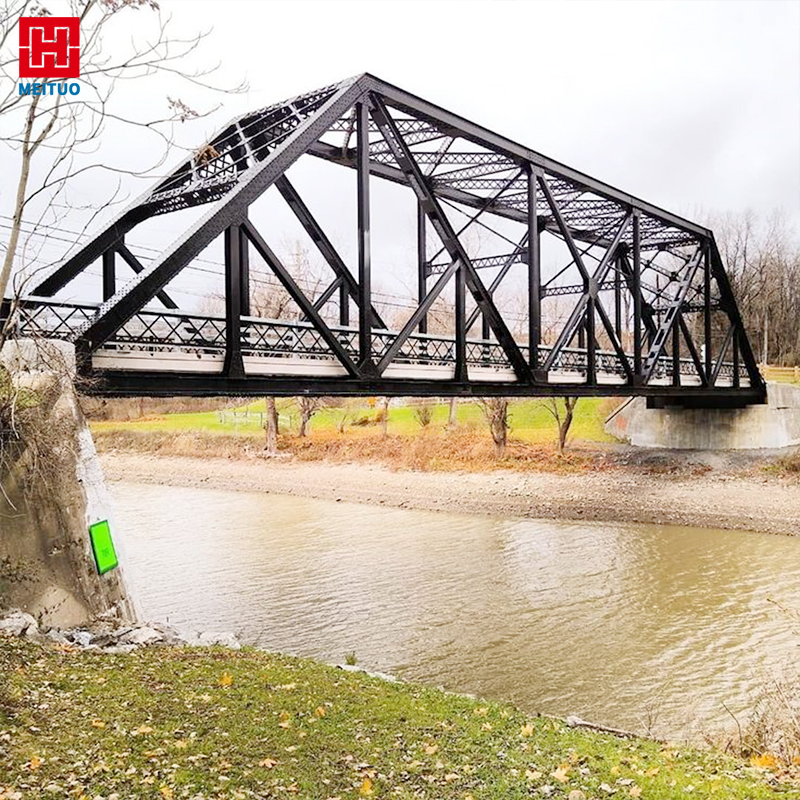

Bailey Bridge
Brand MEITUO
Product origin China
1. Heavey Steel Structure Portable Truss Bailey Bridge uses high-quality steel Q355, which has excellent load-bearing capacity and earthquake resistance.
2. Heavey Steel Structure Portable Truss Bailey Bridge adopts modular design, which is convenient for transportation and on-site assembly, and the construction period is short.
3. Heavey Steel Structure Portable Truss Bailey Bridge has a stable structure and corrosion-resistant treatment, and its service life can reach decades.
Bailey Bridge
Product introduction of Steel Structure Pedestrian Bridge Bailey:
The Steel Structure Pedestrian Bridge Bailey produced by MEITUO is a modular steel structure bridge system, which is widely used in emergency rescue, temporary passages, military bridges and civil engineering projects. Steel Structure Pedestrian Bridge Bailey is made of high-strength steel and assembled from standardized prefabricated components. It has a reasonable structure, strong bearing capacity, can be quickly disassembled and assembled, and is easy to transport. It can adapt to various terrains and construction environments. The Steel Structure Pedestrian Bridge Bailey we produce is flexible in design, and the span of the bridge deck can be adjusted according to actual needs. It has strong wind and earthquake resistance and is suitable for vehicles, machinery and personnel. Steel Structure Pedestrian Bridge Bailey can be used for war preparedness construction, post-disaster reconstruction, traffic diversion, etc.
Product advantages of Prefab Steel Structure Bailey Bridge:
The Prefab Steel Structure Bailey Bridge produced by MEITUO has significant product advantages and is particularly suitable for engineering projects that require rapid deployment and high-strength load-bearing. The Prefab Steel Structure Bailey Bridge we produce uses high-quality Q345B high-strength steel to ensure the stability and durability of the entire bridge structure; all Prefab Steel Structure Bailey Bridge components are precision-made with standardized processes and have higher interchangeability and assembly efficiency. With our professional engineering design team and rich construction experience, customers can obtain customized bridge solutions to meet different spans, loads and environmental requirements. MEITUO uses advanced anti-corrosion treatment technology in bridge painting to significantly extend the service life of the product. From design to delivery, the entire process is strictly controlled to provide customers with high-quality, high-efficiency, and cost-effective Prefab Steel Structure Bailey Bridge, which is an ideal choice for your engineering construction.
Product parameters of Prefab Metal Construction Bailey Bridge:
| Structure of Heavey Steel Structure Portable Truss Bailey Bridge | Material of Prefab Steel Structure Bailey Bridge | Details of Prefab Metal Construction Bailey Bridge | |
| Main Structure | Frame Columns and Beams | Q235/Q355 | |
| End Wall Column | Q235/Q355 | ||

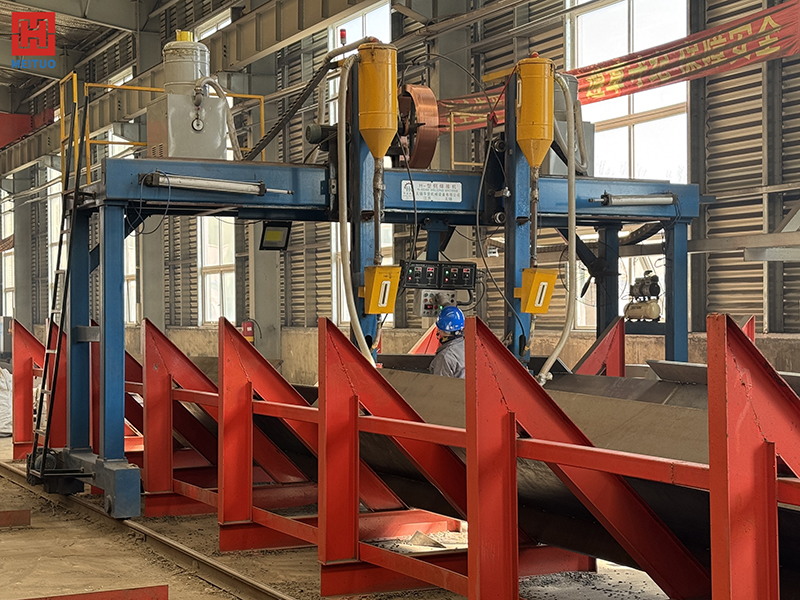

| H-beam welding（columns and beams） | Automatic Submerged Arc Welding | ||
| Rust Removal | Shot Blasting | ||
| Surface Processing | Alkyd Paint/Epoxy Zinc Rich Paint/Galvanized | ||
| High-Strength Bolt | Grade 10.9/8.8 | ||
| Common Bolt | Grade 4.8 | ||
| Secondary Structure | Flange Brace | Angle Steel | |
| Horizontal Support | Angle/Round Steel | ||
| Vertical Support | Angle/Round Steel | ||
| Tie Rod | Angle/Round Steel | ||
| Tie Bars | Round Steel/Casing/Shaped Steel | ||
| Purlin | Galvanized Z-beam/C-beam | ||

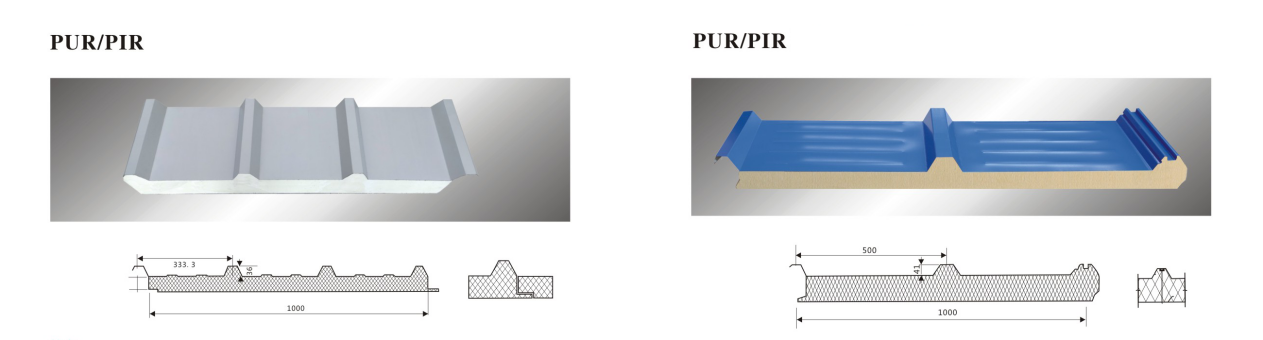

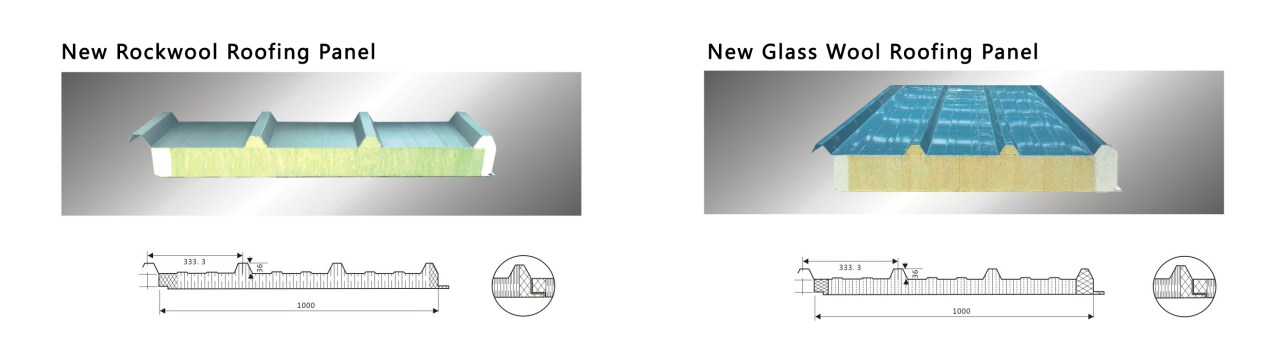

| Maintenance System | Roofing System | Roofing Materials | 360°Locking Seam System / Locking Screw System / Composite Panel Roofing / Rockwool Maintenance System |
| Daylighting Band | FRP Plate | ||
| Gutter (inside/outside) | Stainless Steel/Colored Steel Plate | ||
| Rain Pipe | PVC Pipe/Color Steel Rainwater Pipe | ||

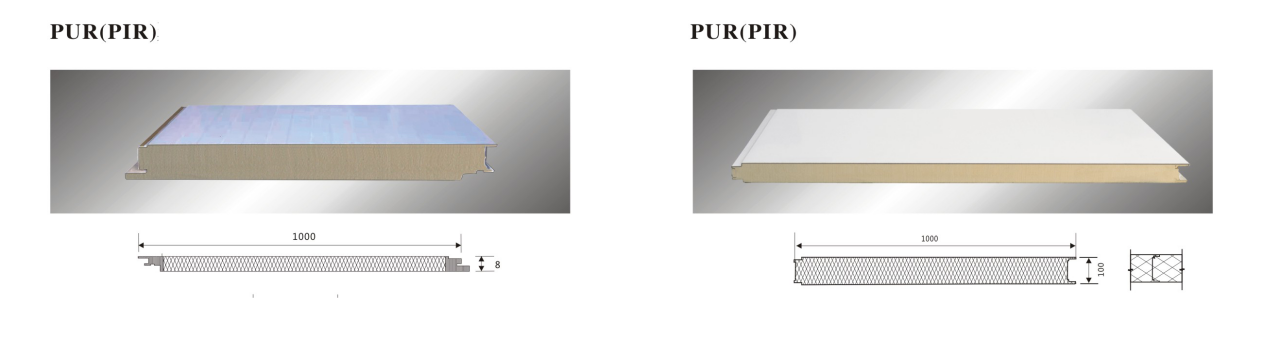

| Wall System | Wall Materials | Locking Screw System / Composite Panel Wall / Rockwool Maintenance System | |
| Accessories | Sealant, Self-tapping Self-drilling Screws, etc. | ||
| Edge Flashing | Color Plate/Stainless Steel | ||
| Others | Ventilator | Powered/Unpowered Axial Flow Ventilators | Customizable |
| Ventilation Tower | Finished Product | Customizable | |
| Door | Electric Rolling Door/Sliding Door/fireproof door | Customizable | |
| Window | Aluminum Alloy/plastic Steel Window/Fireproof Window | Customizable | |
Why choose us?
The Prefab Metal Construction Bailey Bridge structure we produce has a large span, which can achieve a single span or multi-span space of 150 to 250 feet, without the need for intermediate columns, effectively improving the internal utilization rate. Prefab Metal Construction Bailey Bridge is economical and affordable, with a unit price ranging from US$25 to US$75 per square meter according to customer needs, which is very competitive in the market. MEITUO provides a quick installation solution, the construction process is simple and efficient, and it is strictly executed according to the drawings, which greatly shortens the construction period. The service life of Prefab Metal Construction Bailey Bridge can reach 50 years, with excellent durability and safety.

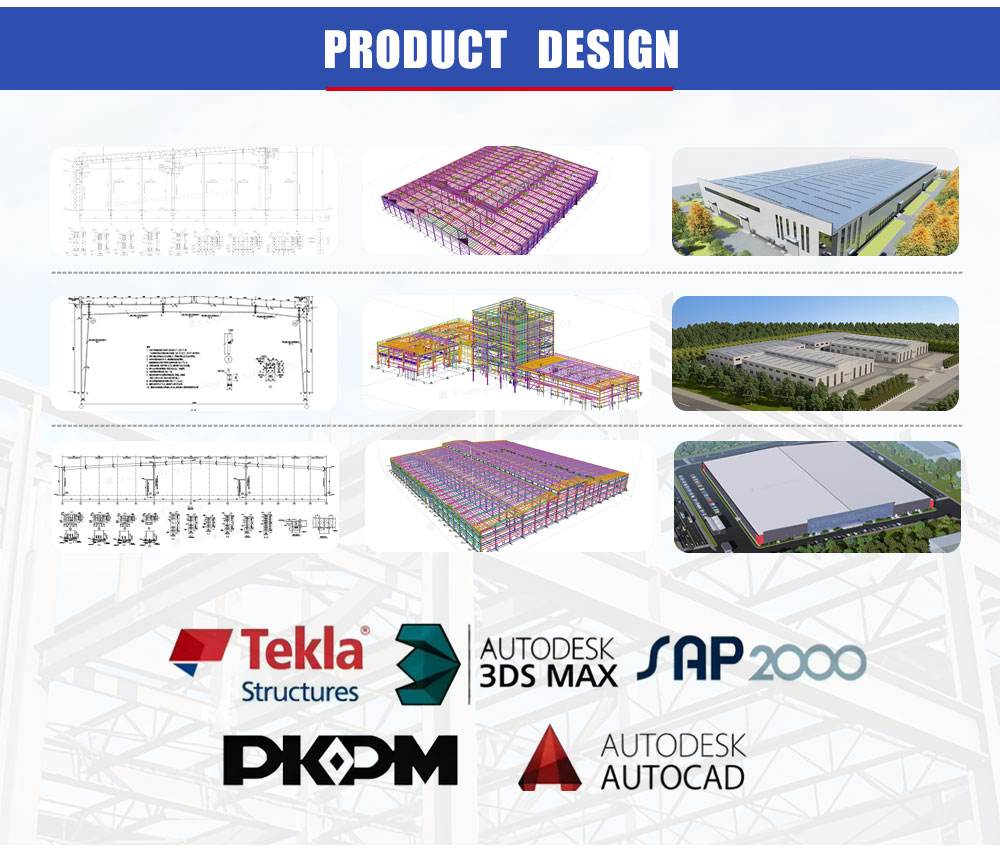

Design Service of Prefab Metal Construction Bailey Bridge:
Our in-house production capabilities allow full customization of steel structures and accompanying panels, offering you optimized solutions without compromising affordability.
About us:
Shenyang Meituo Steel Structure uses cutting-edge production lines to deliver steel structure solutions that are reliable, efficient, and cost-effective. Whether for a steel bridge or a commercial building, we provide customized solutions that align with your vision.
